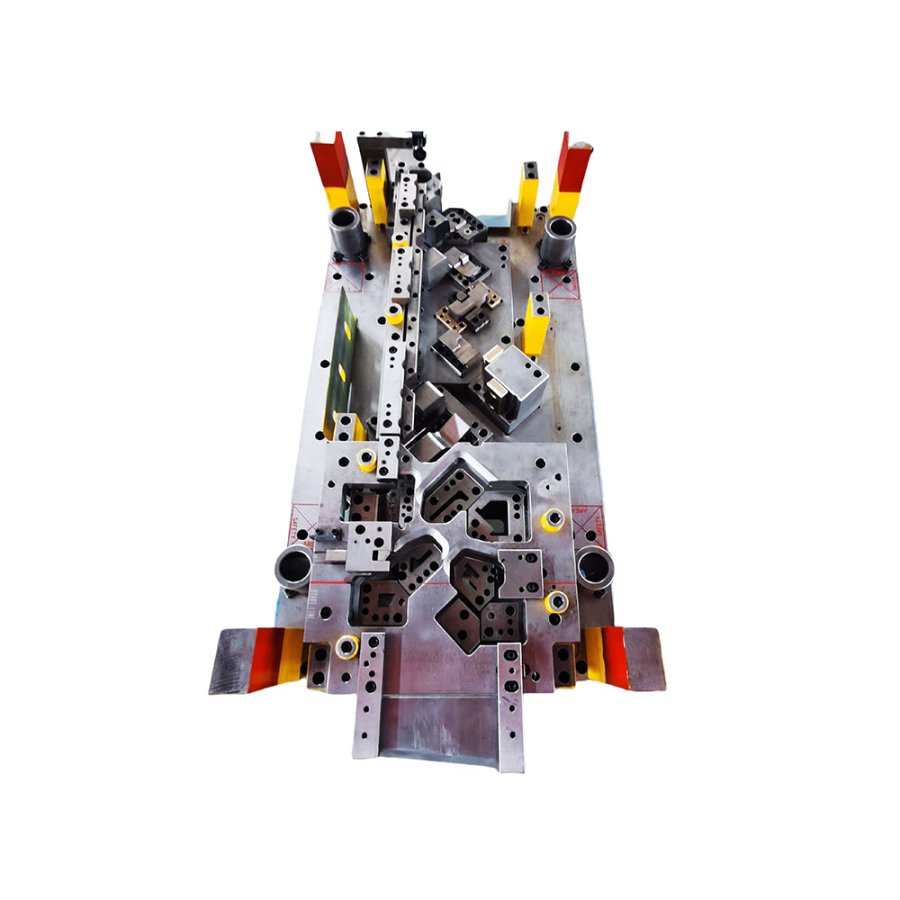

Precision Progressive Tool Stamping Die/Mold/Tooling for Auto Parts Mould

Introduction:

Product Description: High Precision Stamping dies that can be used to produce stamping parts for automobile.

* Body coverings: engine hood, roof cover, trunk lid, front fenders, door panels, etc.

* Body structural components: A-pillar, B-pillar, C-pillar, longitudinal beam, transverse beam, threshold beam, etc.

* Stamping parts for walking system: control arm, steering knuckle, wheel hub, etc.

* Stamping parts for engine and chassis systems: engine brackets, oil pan, various chassis brackets, etc.

* Punched parts: gaskets, nut plates, etc.

* Bending parts: door hinge arms, various brackets, etc.

* Deep drawn parts: automotive fuel tanks, engine hood inner panels, etc.

* Flanged parts: automotive wheel rims, reinforced rib flanged parts, etc.

Inquiry Now

Product Details
Inquiry Now
Related Products

Product Details

In terms of stamping molds, our company has complete supporting equipment, excellent production technology, comprehensive testing methods, and years of production experience. From the moment you contact us until you receive the goods, we are always ready to answer any questions you may have. We will not only provide you with the best product quality, but the prices we offer will also satisfy you.

Product Name	High PrecisionStamping Mold Automotive Parts	Design Software	AUTOCAD, CAM,CAE,CIMATEON,UG
Usage	Metal Auto Parts Stamping	Brand Name	Jingxing
Processing Method	Forming , Bending , Deep Drawing , Punching	Mould Material	HT200, HT300(GG20,GG30)(FC200-300) Mocr, Cr12Mov, 7CriMov . ...etc
Process Combination	Single-Process Mould、Progressive Mould	Origin	Qing Dao China
Driving Motor Type	Permanent Magnet	Production Capacity	500 Sets/Year
Milling Speed	Normal Speed、High Speed	After-sales Service	Guarantee
Lead Time	4-5Weeks	Manufacturing Technology	CNC Milling
Specification	Customized	Parts Detection Method	Measurement of Three Axis NC
Mould Delivery Time	25 to 30days After Mould Drawing Confirmed	Packing	Wooden Case、Customized
Stamping Mould Life	About 1,000,000 Shots	Die Standard	Hasco, Dme
Stamping Mould types	Drawing Die, Flanging Die, Punching Die, Triming Die, Truing Die	Trademark	OEM
Maximum Packaging Size	150015002000mm	Package Gross Weight	1500-2000kg
